Stryker 200A-G
Engine Driven 200A Welder Generator
More amperage, more run time — built to keep working.
- Output Range
- 30A – 200A
- Part Number
- STR-200A-G
- Processes
- ARC (SMAW)
- 30A – 200A output
- 100% @ 160A · 60% @ 200A
- Stryker S420 gas engine
- 3.5 kW auxiliary power
Overview
The 200A-G is a gas engine-driven welder generator built around the Stryker S420 engine, delivering welding output from 30A to 200A with a 100% duty cycle at 160A and 60% at 200A.
Auxiliary power output is available to run hand tools, lighting and other job-site accessories. It is intended to support the welding operation rather than to serve as a high-power standalone generator.
A digital data center displays auxiliary output frequency (Hz), voltage (V) and machine running hours to help schedule service.

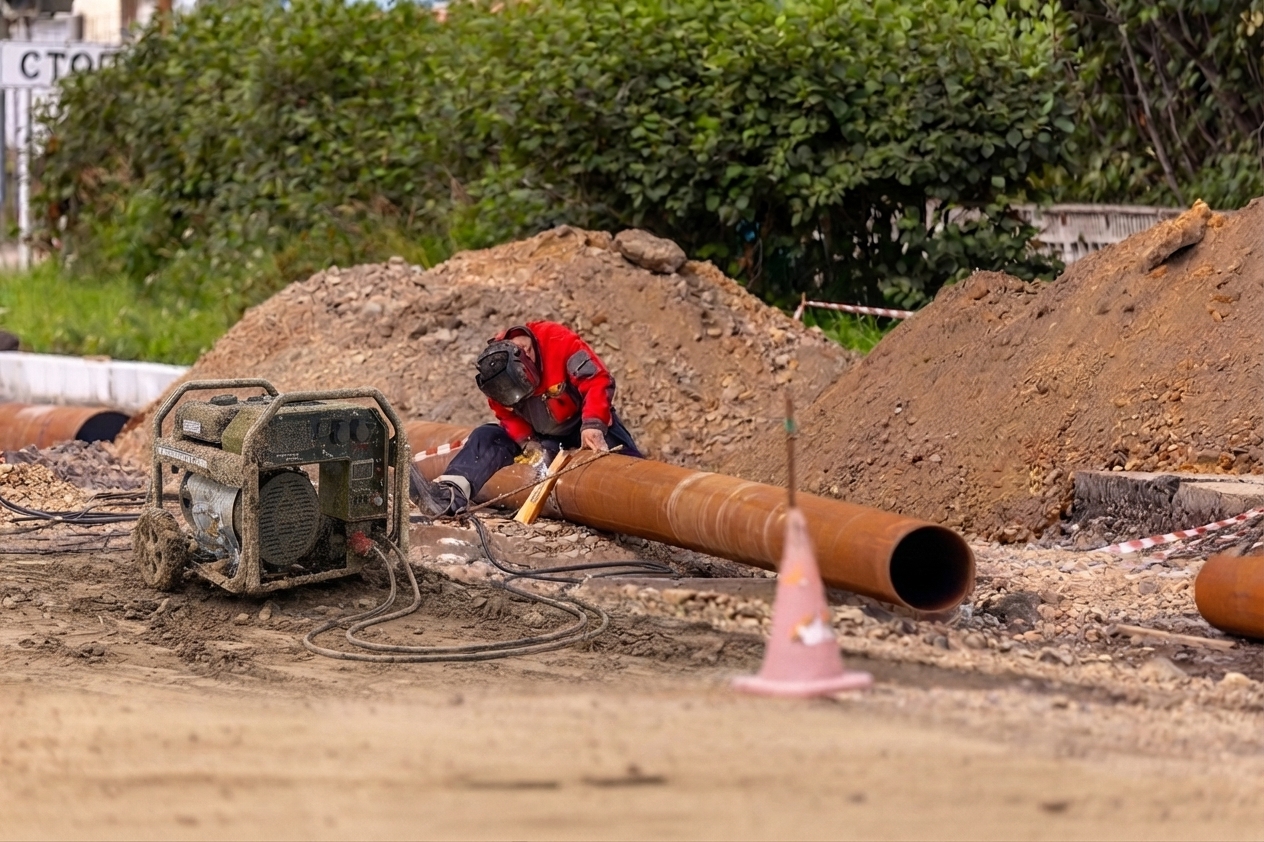

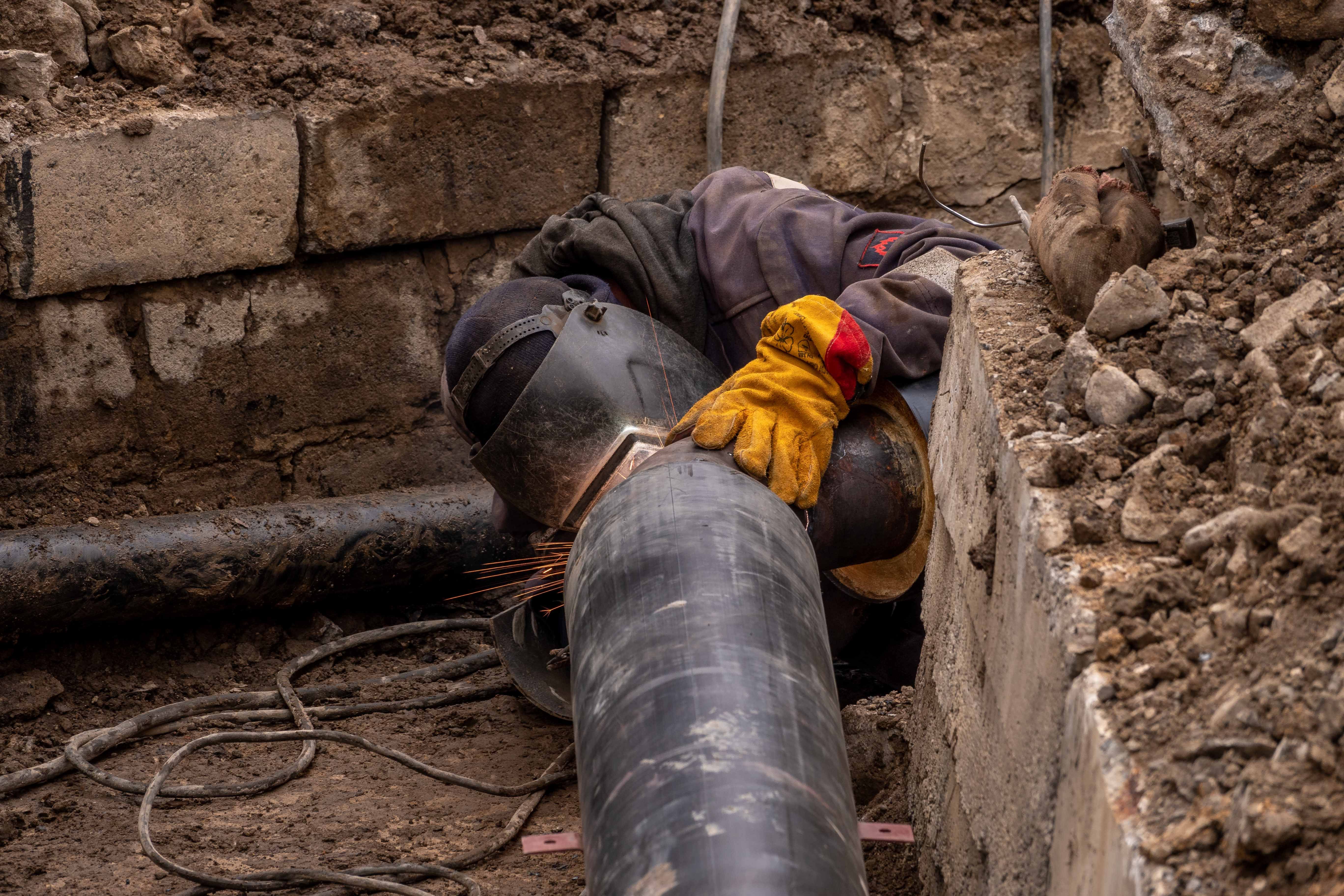

In the field
Specifications
Part Number STR-200A-G
Welding (IEC Rating)
- Current Range
- 30A – 200A
- Processes
- ARC (SMAW)
- Duty Cycle
- 100% @ 160A · 60% @ 200A
- Electrode Diameter
- 1.6 mm – 4.0 mm (1/16" – 5/32")
Engine
- Manufacturer
- Stryker – Gas
- Model
- S420
- Emissions Rating
- US EPA
- Power
- 9.0 kW / 12.0 HP
- Displacement
- 0.42 L / 26 cu.in
- Speed
- 3750 RPM
- Oil Capacity
- 1.1 L / 0.29 G (US)
Auxiliary Generation
- Type
- Direct Drive / Brushless
- Current Type
- AC
- Frequency
- 60 Hz
- Output Voltage
- 1 @ 120V – 20A
- Maximum Power
- 3.5 kW
- Receptacle
- 120V NEMA 5-15R
General & Dimensions
- Fuel Capacity
- 5.5 L / 1.45 G
- Sound Rating
- 72 dB @ 7 m
- Open Circuit Voltage
- 75 OCV @ 3750 RPM
- Length
- 568 mm / 22.36 in
- Width
- 568 mm / 22.36 in
- Height
- 528 mm / 20.79 in
- Net Weight
- 68 kg / 150 lbs
Specifications are drawn from the official Stryker America specification sheet and are subject to change. Refer to the product owner's manual for complete operating information.
