Stryker 150A-B
Battery Powered Welder
Battery powered. Fully portable. No exhaust, no cords.
- Output Range
- 10A – 150A
- Part Number
- STR-150A-B
- 10A – 150A output
- 100% duty cycle @ 25°C
- 48V / 2400 Wh lithium-ion
- 4+ hours continuous welding
Overview
The 150A-B is designed for high portability and mobility with high power and a high duty cycle in its category, aimed at smaller welding operations. It is designed for welding materials up to 1/4 to 3/8 inch thickness (thicker if the material is beveled with a root pass and fill welding).
With a fully charged battery the welder can be used for 4+ hours continuously; with a short recharge a full workday of welding can be achieved. Because there is no engine, it can be used close to the welding location — just stay aware of welding fumes and keep the unit away from water and extreme moisture.
50mm Dinse output connectors let the operator quickly attach and remove cables when moving the welder between locations. Two sets of vibration dampers protect the internals and keep the machine planted on hard surfaces during use.

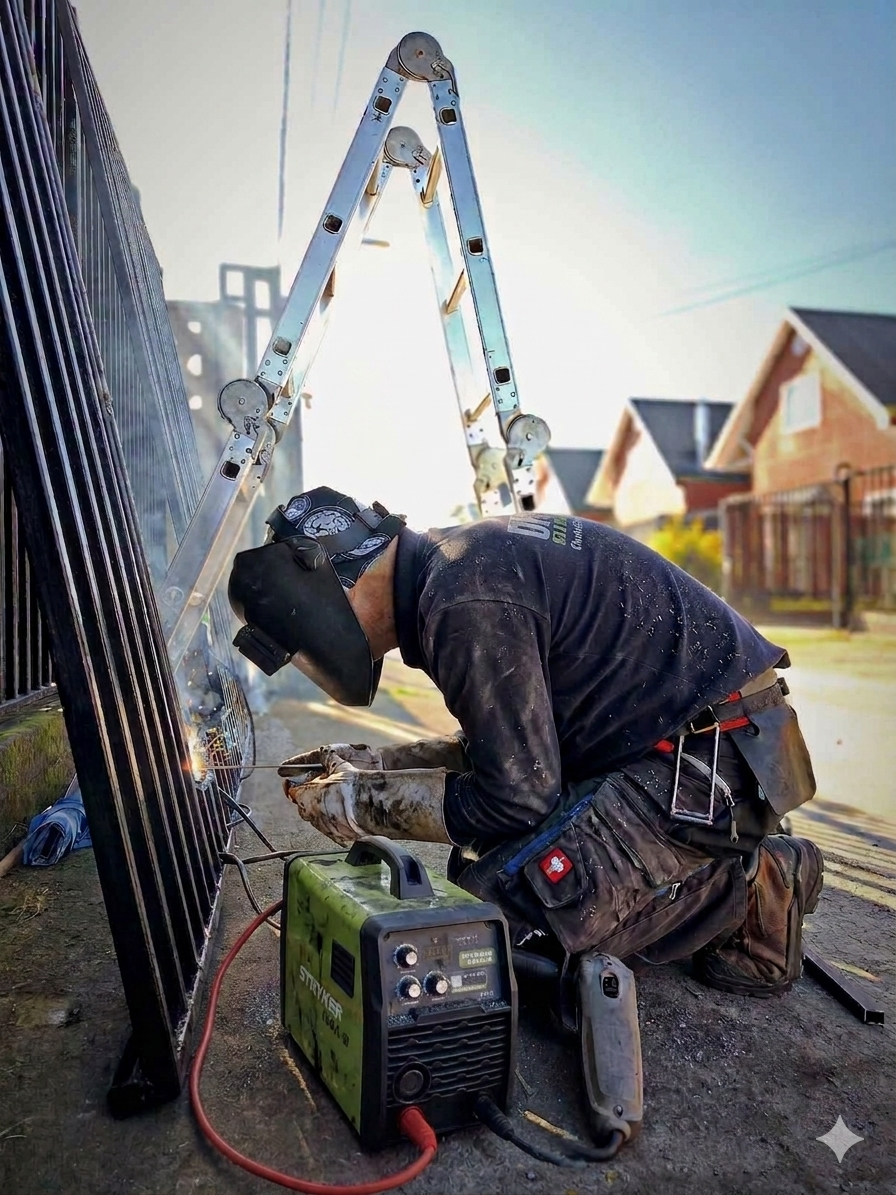

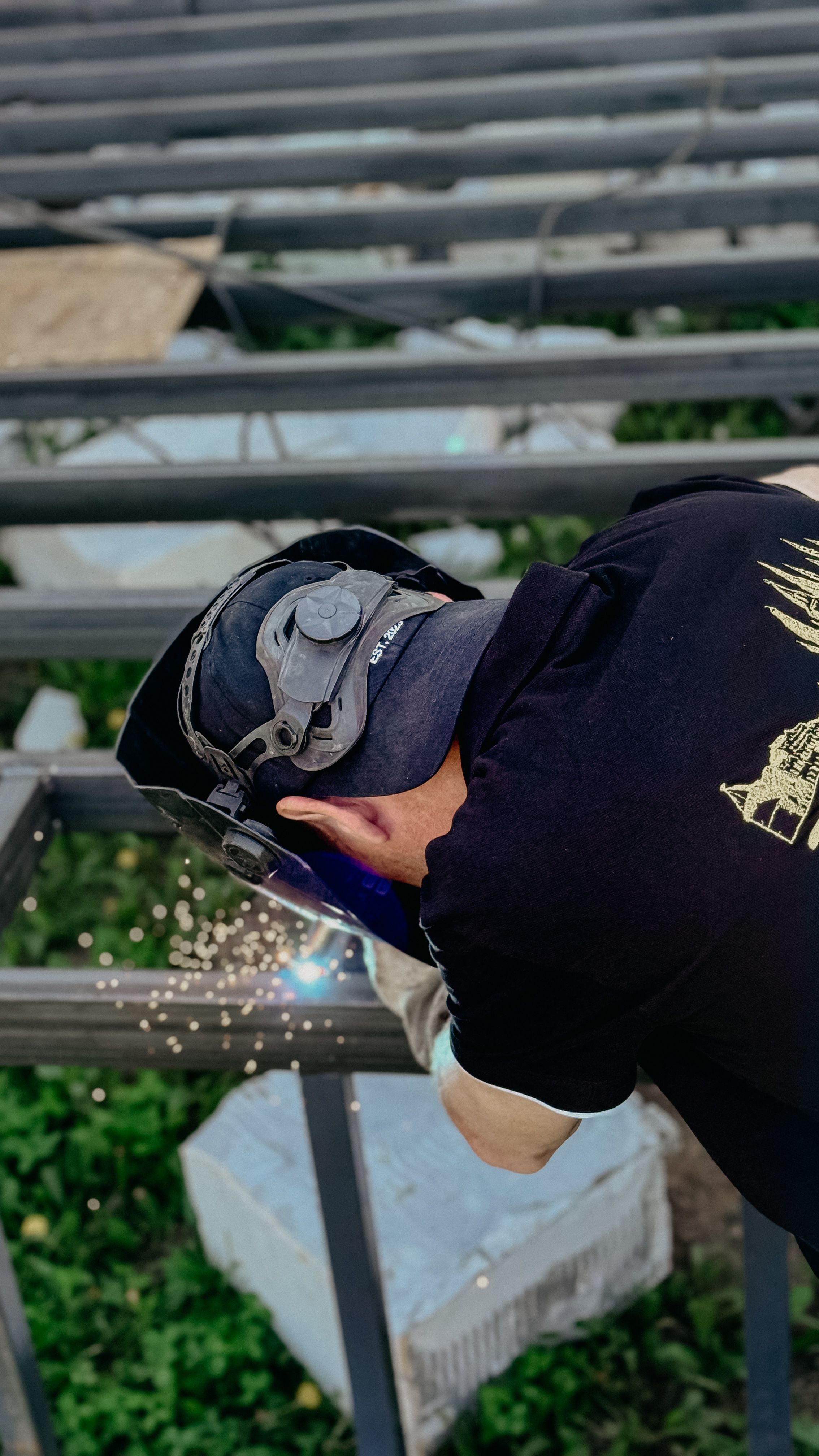

In the field
Specifications
Part Number STR-150A-B
Welding (IEC Rating)
- Current Range
- 10A – 150A
- Duty Cycle
- 100% @ 25°C

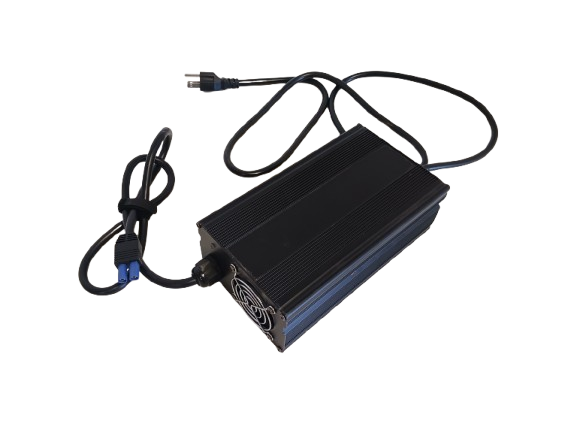

Charger
- Charger Voltage
- 120V AC / 60Hz
- Charging Output
- 56.4V (15A)
- Charging Time
- 3.5 Hrs
- Charging Temp
- 0 – 45 °C (32 – 113 °F)
Battery
- Type
- Lithium-Ion
- Voltage
- 48V DC
- Capacity
- 2400 Wh
- Cooling
- Automatic Fan (2)
- Electrode Consumption
- 2.5 mm (3/32 in) – 105 electrodes · 3.25 mm (1/8 in) – 45 electrodes (per charge)
Dimensions
- Height
- 350 mm / 13.78 in
- Width
- 215 mm / 8.5 in
- Depth
- 460 mm / 18.11 in
- Net Weight
- 21.6 kg / 47.6 lbs
- Operating Temp
- -20 to 40 °C (-4 to 104 °F)
Specifications are drawn from the official Stryker America specification sheet and are subject to change. Refer to the product owner's manual for complete operating information.
