Stryker 360A-D
Engine Driven 360A · Dual 200 / 200
Diesel power for high output and dual-operator welding.
- Output Range
- 30A – 380A (Single) · 30A – 200A (Dual)
- Part Number
- STR-360A-D
- Processes
- ARC (SMAW) · TIG (GTAW) · MIG (GMAW) · ARC Gouging
- Single 30A – 380A · Dual 200/200
- ARC / TIG / MIG
- Yanmar 3TNV88 diesel
- 6.0 kW auxiliary power
Overview
The 360A-D is a Yanmar diesel engine-driven welder built for high output and long duty cycles. In single mode it supports ARC / TIG / MIG and gouging from 30A to 380A; in dual mode it runs two independent 200A arcs for two operators.
At 610 kg it is sized for permanent truck or trailer installation rather than hand carrying. Auxiliary generation provides up to 6.0 kW across 120V and 240V receptacles.
The engine is covered directly by the manufacturer, Yanmar, through their repair-center network. See Service / Warranty for details.

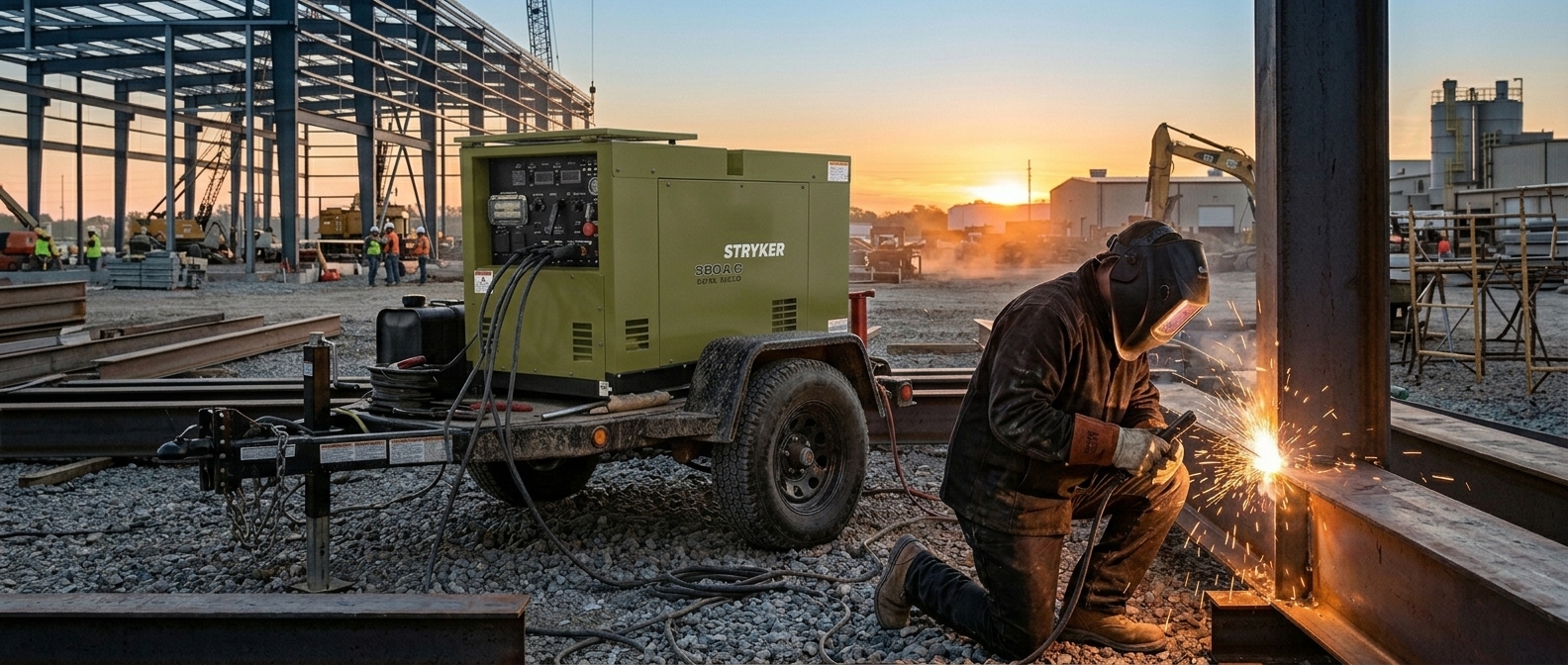

In the field
Specifications
Part Number STR-360A-D
Welding — Single Mode (IEC Rating)
- Current Range
- 30A – 380A
- Processes
- ARC / TIG / MIG · ARC Gouging Rod
- Gouging Rod
- 6 mm (15/64 in)
- Duty Cycle
- 100% @ 360A · 60% @ 380A
Welding — Dual Mode
- Current Range
- 30A – 200A
- Processes
- ARC / TIG / MIG
- Duty Cycle
- 100% @ 200A
Engine
- Manufacturer
- Yanmar – Diesel
- Model
- 3TNV88
- Emissions Rating
- US EPA
- Power
- 15.7 kW / 27.35 HP
- Displacement
- 1.642 L / 100.2 cu.in
- Speed
- 1800 RPM
- Oil Capacity
- 6 L / 1.58 G (US)
- Coolant Capacity
- 7 L / 1.84 G (US)
Auxiliary Generation
- Type
- Direct Drive / Brushless
- Current Type
- AC
- Frequency
- 60 Hz
- Output Voltage
- 2 @ 120V – 50A · 1 @ 240V – 25A
- Maximum Power
- 6.0 kW
- Receptacles
- 120V NEMA 5-15R · 240V NEMA 6-50R
General & Dimensions
- Fuel Capacity
- 52 L / 13.74 G
- Starter Battery
- 12V – 60 Ah
- Sound Rating
- 70 dB @ 7 m
- Open Circuit Voltage
- 75 OCV @ 1800 RPM
- Height
- 902 mm / 35.52 in
- Width
- 650 mm / 25.59 in
- Depth
- 1450 mm / 57.09 in
- Dry Weight
- 610 kg / 1345 lbs
Specifications are drawn from the official Stryker America specification sheet and are subject to change. Refer to the product owner's manual for complete operating information.
